China Car Parking Lifts

Model: D4P4P

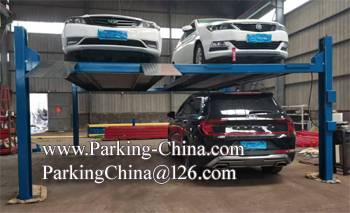

Four Post Four Cars Parking Lift

Description

This park lift has 4 post with connected 2 parking boards. It can lift together to save parking time, also save parking area spaces. Suitable installed between 2 concrete columns basement area; Heavey SUVs available, max 3000kg SUV;
has 2 types of options, one is actually 2 sets of 4 post parking lifts, the outer lifts has longer posts with higher car pallet above the lower pallet. Another is unique 4 columns with sliding rails; The lift height can reach 3.5m to 4.28m as options; It can be used for family, apartments, hotels and other places; it can be designed based on site dimensions; 1 car space will park two cars to save more spaces; it can be installed both inside room and outside; For family use, it can provide 220V power; it can save parking area with more cars parking. Generally, ground car for SUV and other 2 pallet cars for Sedans.

Characteristics of the System

1. Hydraulic drive, steel rope lift, hydraulic system makes the system very low noise and steady working;

2. Single unlocked by manual or four sides unlocked automatically with anti-fall devices; the anti-fall blocks installed in the columns will prevent the car platform to fall informally to insure safety of the car;

3. Self-lubrication bearing to guarantee the safety at any height; 4. Slippery runways and the traction plate for convenient use; the distance between two runways plates are fixed, there is movable plate to receive oil in the middle;

5. Appearance with high quality painting, green environment protection without lead, beautiful color, anti-rust painting for long time use;

6. This park lift is convenient and reliable, easy operation, quick installation, simple installation at site, no welding, no cutting, low requirements of land area; and it is movable, easy re-installation to adapt all sites;

7. Lift weight can reach 3mt for double cars parking;

8. Adaptable at family garage with a parking space L5.2m, W2.7m, H4.828m;

Advantages

Heavy-Duty Lifting Capacity: This high-quality car stacker boasts a lifting capacity of 4.5 tons, making it suitable for large vehicles and heavy-duty applications, as requested by the user.

Double-Wide 4-Post Design: The double-wide 4-post design provides ample space for parking and lifting multiple cars, ensuring efficient use of garage space.

Reliable Double Cylinder Hydraulic Lift: The double cylinder hydraulic lift system ensures smooth and stable operation, providing a safe and reliable lifting experience.

Long-Lasting Warranty: Backed by a 12-month warranty, this product offers peace of mind for customers, providing assurance of its quality and durability.

Brand Authenticity: Genuine OEM Vanhon brand, model VHL445D, guarantees the product's authenticity and meets high industry standards.

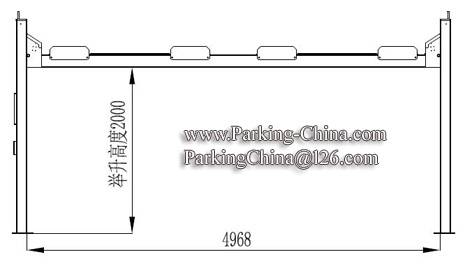

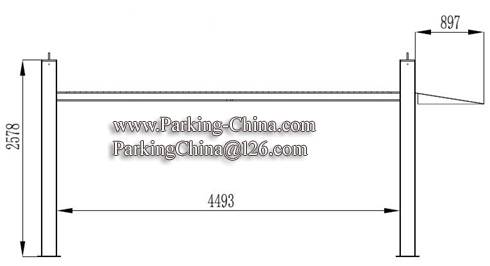

Technical Parameters
