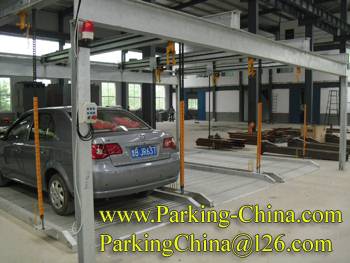

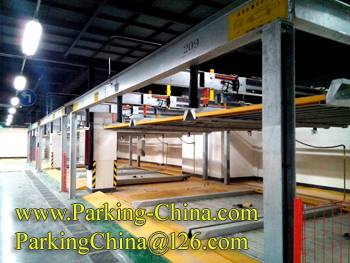

Motor Puzzle Parking System 2-6 Levels
Description

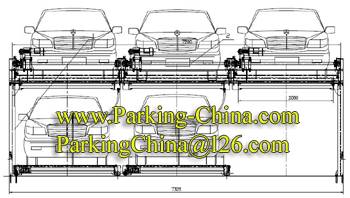

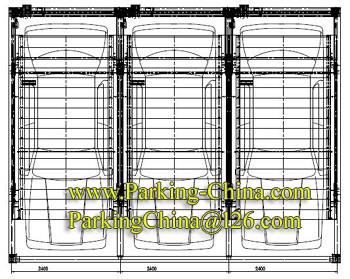

The equipment is adopted speed reducer to drive by chains or wires, which top board only lift and fall and the bottom of board only move horizontally. Reserving a parking space is at the bottom, it moves to left or right as loading board move horizontally, to top car can fall to the bottom.
Features
1.PLC control, easy operation, convenient rise and drop, (button, PLC, IC card is optional on operation)
2.Move stably, lift and drop safely.
3.Loading boards are whole, they are formed by cold rolling.
4.Anti-dropping device, safe and reliable
5.Cars size and parking place are controlled by photoelectric relay monitoring.
6.Beams with grooves can collect water and oil over the car drop.
Technical Parameters
| Item | Parameters |
|---|---|
|
Name |
Motor Chain Puzzle Parking System 2 Levels |
|
Model |
MPSH2-5D |
|
Car Size |
5000mm*1850*1550mm/2050mm (ground level) |
|
Weight of parking car |
2000kg |
|
Mode of drive |
Motor+Chain |
|
Lift speed |
3-5m/min |
|
Slide speed |
7m/min |
|
Noiset |
85dB max |
|
Power |
3 phases 5 wires AC380V 50HZ |
|
Control system |
PLC |
|
Mode of operate |
Manual Button / Auto IC card |
|
Mode of control |
Manual |
|
Mode power |
Lift motor: 3 Phases,AC380V,50Hz,2.2kW Slide motor: 3 Phases,AC380V,50Hz,0.2kW |
|
Coating |
Powder painting (Standard), hot galvanized steel frame (Option) |
|
Car pallet |
Galvanized waving plate with plastic spray side beam |
|
Safety |
Wheel block rod: Diameter 48*3 STEEL TUBE
Platform back beam: 3mm C STEEL SECTION |
